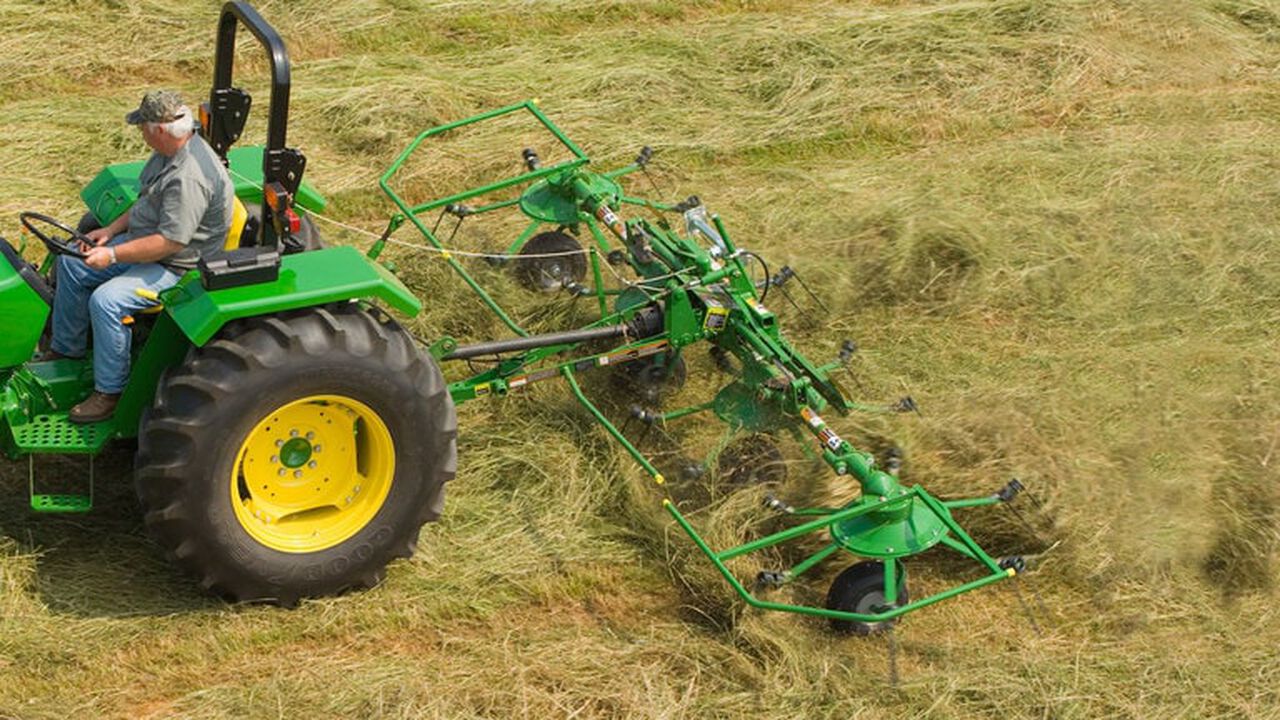

TD13 Series Hay Tedder, image number 0
Click to Zoom

TD13 Series Hay Tedder

New Built to Order
SKU: td13_xf
Contact Sales for Pricing
402-781-8489
Apply for Financing
Delivery available — Contact AKRS Sales for details.
DigidriveTM drive system ensures maximum lifeHydraulic working angle adjustmentDurable Steel tinesBalloon tires operates smoothly on bumpy ground
Digidrive system Digidrive system
#

The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.



Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.

Hydraulic angle adjustment for easy transport Hydraulic angle adjustment for easy transport
#

The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.



It allows the operator to set the working angle of the tedder one time, and then quickly and easily go from the transport to the working position using the tractor hydraulics from the comfort of the seat.

Flexible steel for durability and dependability Flexible steel for durability and dependability

The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.

Balloon-technology tires on Frontier™ TD13 Series Balloon-technology tires on Frontier™ TD13 Series

The TD13 Series Hay Tedder has large balloon tires that allow smoother operation over irregular ground.

An aftermarket, field-installed wide deflector belt kit is available for feed bunk applications on the BP1166 Bale Processor.



An aftermarket, field-installed anti-wrap deflector kit helps to prevent hay from wrapping on the tine arms and rotor housings of the TD1316 Hay Tedder during use.



An aftermarket, field-installed wheel deflector kit helps prevent hay from being trapped by the tine arms of the TD1316 Hay Tedder during operation in light and/or fluffy hay applications.

Reduction gearbox conversion kit is great for heavy windrows or night windrow applications when using the TD1316 Hay Tedder.

Dimensions
Width in working position
5.4 m
17.7 ft
Tedding width
5.0 m
16.4 ft
Transport width
2.8 m
9.2 ft
Transport height
2.7 m
8.7 ft
Transport length
2.3 m
7.6 ft
Weight
Machine
Shipping
456 kg
1,005 lb
Tractor requirements
Minimum hp (kw)
14.9 L
20 hp
Hydraulic valves (SCVs) required
One
PTO
Type
Torque Limiter
rpm
540 rpm
Working position for other crop flow
Straight, right-hand, left-hand angles
Standard
Hitch
Type
Drawbar
Rotor
Quantity
Four
Tine arms
Quantity per rotor
Six
Type
Round tubular
Size, in. (cm)
Tine
Height adjustment
Hydraulic tilt
Angle adjustment
Tires
Working size
6 ply: 38x15 cm
15x6 in.
Transport size
Working type
Balloon
Transport type
Lighting and safety
Transport lights
Safety chain
Standard
Safety guards
Standard
SMV
Standard
Transport position
Hydraulic vertical fold with hydraulic tilt
Standard
Integrated transport frame
Set-up time
Labor hours
6
Warranty
Time period
1 year
Additional information
Date collected
