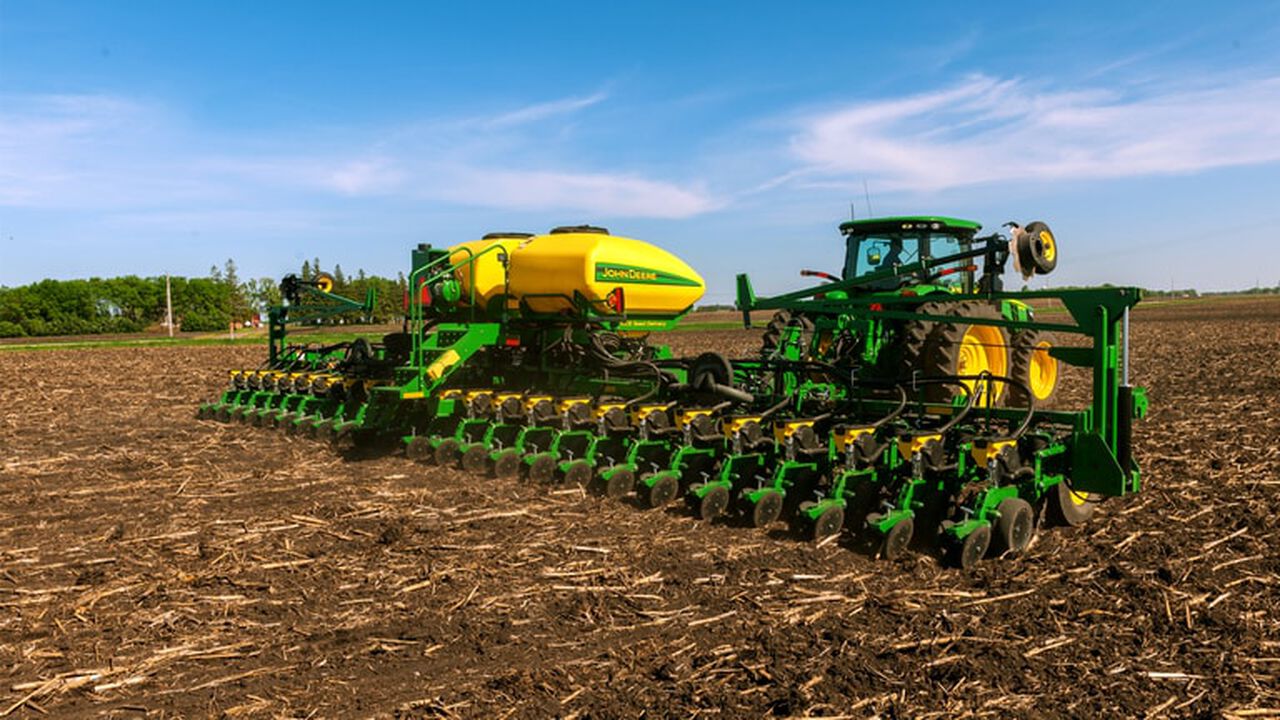

DB44 24Row22 Planter, image number 0
Click to Zoom

DB44 24Row22 Planter

New Built to Order
SKU: db44xh
Contact Sales for Pricing
877-AKRS-NOW
Apply for Financing
Delivery available — Contact AKRS Sales for details.
44-ft. toolbar with 24 rows on 22-in. spacingAvailable in mini-hopper, 1.6-bu., or 3-bu. ExactEmerge or MaxEmerge™ 5eRequires a minimum 235-hp tractor equipped with Category 4 drawbar
Key Specs
Number of rows
24
Row spacing
56 cm
22 in.
Frame - Fold configuration
Frame - Flexibility
Row unit seed hoppers
Capacity
Vacuum meter: 2.2 L
0.062 bu
Seed Meters
Base
Vacuum
Rows and Row Spacing
Number of rows
24
Row spacing
56 cm
20 in.
Frame
Fold configuration
Frame tube size
Fold-and-go from tractor cab
Flexibility
Hitch
Base
Optional
Rear hitch
Lift System
Type
Wheel modules with rephasing hydraulic cylinders
Number of cylinders
Tires
Base
Center frame tires: 400/500-R22.5: 552 kPa
5.5 bar (80 psi)
Center frame tires: 600/50R22.5: 379 kPa
3.8 bar (55 psi)
14-ply Center frame tires: 31-13.5x15 621 kPa
6.2 bar (90 psi)
Center frame tires (DB66 and smaller planters): 445/50R22.5: 517 kPa (5.2 bar) [75 psi)
6-ply wing frame implement tires: 31-13.5x15: 152 kPa (1.5 bar) [22 psi]
6-ply wing frame skid steer tires: 31-13.5x16.5: 241 kPa (2.4 bar) [35 psi]
Optional
Quantity
Row Units
Type
ExactEmerge™ row units
or MaxEmerge 5e row units
Opener
Tru-Vee double disk
Depth gauging
Adjustment
Walking wheels
Row unit seed hoppers
Capacity
Vacuum meter: 2.2 L
0.062 bu
Row unit down force
Scrapers, opener blades
Seed tube sensors
Seed Meters
Base
Vacuum
Optional
Finger pickup
Radial bean meter
Central Commodity System
Seed capacity
3524 L
100 bu
With Refuge Plus option: 4405 L
125 bu
Drive System
Base
Variable rate motors
Optional
Number of drive wheels
Drive wheel disconnect
Counter shaft
Drill shaft
Seed transmission
Transmission combinations
Markers
Type
Automatic alternating or independent control
Control
Marker disk
Shear bolt protection
Less marker option
Closing System
Rubber tire closing system
Cast iron closing system
Herbicide and Insecticide
Insecticide only hopper
Herbicide only hopper
Insecticide and herbicide hopper
Liquid Insecticide System
System available
Tank capacity
Seed Monitor System
Base
SeedStar™ electronic system
Optional
Tillage Attachments
Unit-mounted coulter
Frame-mounted coulter
Bubble blade
.63-in. fluted blade (25 flutes)
.7-in. fluted blade (13 flutes)
1-in. fluted blade (8 flutes)
Row tillage support hanger
Tine tooth
Cons. furrower w/ leading cutout blade
V-wing bed sweeps
Row cleaner
Row cleaner - unit-mounted coulter
Row cleaner - unit-mounted DD fert. opener
Fertilizer
Onboard / towed / tractor tanks
Tank capacity
350 Imperial gal.
1590 L
420 U.S. gal.
Fixed-rate application
Variable-rate application
Pump type
Pump rate
Fertilizer opener type
Flow divider distribution system
Pressure manifold distribution system
Dry fertilizer
ExactRate Fluid Transfer System
Dimensions
Transport width (with markers)
Transport width (without markers)
Transport length
Transport height
Transport weight
Average frame empty weight: 9,344 kg
20,600 lb
Transport underframe clearance
Field operation height
Field operation width
Field operation length
Ag Management Solutions
Map-based seeding
Field documentation
Parallel tracking
Additional Information
Recommended tractor horsepower
Minimum tractor required: 175.2 kW
235 hp
Equipped with Category 4 drawbar
Recommended tractor hydraulics
Tractor standby pressure: 15,500 kpa
155 bar (2300 psi)
Hydraulic system working pressure: 20,684 kPa
207 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827 bar (12,000 psi)
Warranty length
